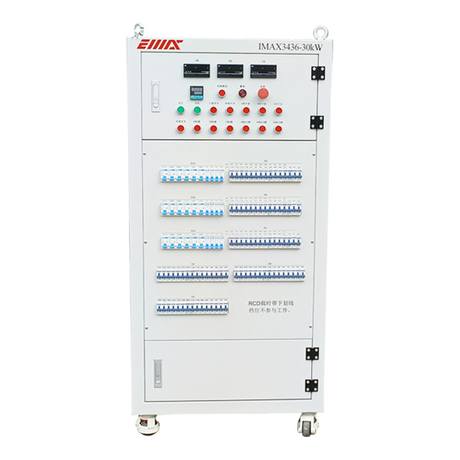

The 30KW RCD Load Bank Upgrade is the ideal solution for testing portable power sources, offering unmatched reliability and precision. Designed to handle 110V/220V input, this load bank provides a versatile and efficient testing tool for a wide range of industrial, commercial, and emergency power applications. Whether you’re testing portable generators, uninterruptible power supplies (UPS), or backup systems, the 30KW RCD Load Bank ensures accurate performance measurement and reliable load simulation.
Equipped with advanced resistive and capacitive load components, the 30KW RCD Load Bank can simulate real-world operational conditions, giving you a comprehensive view of your power source's ability to perform under load. Its high-performance features make it perfect for testing portable power sources in challenging environments, ensuring that generators, UPS systems, and other critical power equipment can handle peak demands without failure.
This load bank is engineered for ease of use with intuitive controls, allowing for quick adjustments to load levels while monitoring performance in real-time. It’s built for durability, ensuring long-lasting operation even in demanding conditions. Whether for routine maintenance, testing, or troubleshooting, the 30KW RCD Load Bank offers exceptional reliability and user-friendly operation.
The upgrade provides an essential tool for testing both small and large-scale portable power solutions, making it invaluable for industries such as construction, telecommunications, data centers, and emergency response. With its robust design and capacity to test up to 30KW of power, this load bank ensures that your portable power sources are ready to perform when it matters most.
Elevate your testing capabilities with the 30KW RCD Load Bank Upgrade, the trusted choice for professionals seeking high-accuracy, dependable load testing for portable power systems.
Name | Three-Phase RCD load - Nonlinear load | |||||
Model | IMAX5330-15k | IMAX5330-30k | IMAX5330-45k | IMAX5330-60k | IMAX3510-100k | IMAX3510-200k |
Rated Voltage | 3P4W，AC220V/380V/400V/415V/440V | |||||
Working Voltage | Other voltages, wide voltages, or other mode can be customized | |||||
Max Power | 15kVA | 30kVA | 45kVA | 60kVA | 100kVA | 200kVA |
Rated Frequency | 50/60Hz | |||||
Power Factor (PF) | 0.6~1 adjustable，0.5 at least | |||||
Crest Factor(CF) | 2~3adjustable | |||||
Step accuracy | 100W/50W/25W Optional | |||||
· Load classification ·
| A Phase：0.1k/0.2k/0.5k/1k/2k/5k/other | |||||
B Phase：0.1k/0.2k/0.5k/1k/2k/5k/other | ||||||
C Phase：0.1k/0.2k/0.5k/1k/2k/5k/other | ||||||
Customizable: three single-phase/one single-phase/three-phase independent, maximum power does not exceed total power | ||||||
Load Function | R load test, RCD load test, total load switch, short circuit function is optional | |||||
Main Testing Items | Portable energy storage power supply, outdoor energy storage power supply, home energy storage power supply, photovoltaic inverter load test, UPS power supply test, other nonlinear load test requirements | |||||
Protection Alarm | Ground protection, high temperature fault, emergency stop and other protection functions. | |||||
Measurement and Control Parameter | Display voltage, current, active power, reactive power, apparent power, power factor, frequency and other basic functions. | |||||
Noise | ≤72dB | ≤75dB | ≤78dB | |||
Air Outlet Mode | Wind in from the side down and out from the top. | |||||
Display Accuracy | 0.1V，0.1A，PF（0.01） | |||||
Control Mode | Manual: Button/circuit breaker control | |||||
Local manual control: through 7 inch LCD touch screen of load bank | ||||||
Remote intelligent control: RS485, (the protocol is Modbus-RTU, and the upper computer software is provided.) | ||||||
Place of Use | Indoor | Indoor/Outdoor | ||||
Weight | 150kg | 230kg | 280kg | 320kg | 400kg | 480kg |
Size | W800mm×D600mm×H1600mm | W1000mm×D1200mm×H1850mm | W1200mm×D1400mm×H2000mm | |||
Name | Single-phase RCD load | ||
Model | IMAX5310-5k | IMAX5310-10k | IMAX3510-15k |
Rated Voltage | 1P2W，220V/110V，Double voltage can be customized | ||
Max Power | 5kVA | 10kVA | 15kVA |
Rated Frequency | 50/60Hz | ||
Power Factor (PF) | 0.6~1（adjustable），0.45 at least | ||
Crest Factor(CF) | 2~3 | ||
Step accuracy | 100W/50W/25W Optional | ||
Load classification | 0.1k/0.2k/0.5k/1k/2k/5k/other | ||
Main Testing Items | Portable energy storage power supply, outdoor energy storage power supply, home energy storage power supply, photovoltaic inverter load test, UPS power supply test, other nonlinear load test requirements | ||
Protection Alarm | Ground protection, high temperature fault, emergency stop and other protection functions. | ||
Measurement and Control Parameter | Display voltage, current, active power, reactive power, apparent power, power factor, frequency and other basic functions. | ||
Noise | ≤65dB | ≤70dB | ≤70dB |
Air Outlet Mode | Wind in from the front, out from the behind | Wind in from the side down and out from the top | Wind in from the side down and out from the top |
Display Accuracy | 0.1V，0.1A | ||
Control Mode | Manual: Button/circuit breaker control | ||
Local manual control: through 7 inch LCD touch screen of load bank | |||
Remote intelligent control: RS485, (the protocol is Modbus-RTU, and the upper computer software is provided.) | |||
