Resistive Load Bank – Comprehensive Guide & Application
What is a Resistive Load Bank?
A resistive load bank is an essential device used for generator load testing, UPS system testing, and power system verification. It converts electrical energy into heat through internal resistive elements, simulating real electrical loads. These load banks are widely applied in various scenarios such as:
200KW resistive load bank testing
Portable resistive load bank for on-site testing
Inductive-resistive load bank for hybrid load simulation
Power test load bank for periodic maintenance
Without proper load testing, power equipment may suffer from unstable output and supply disruptions. Therefore, generator load testing, UPS test load bank applications, and energy storage discharge tests all require resistive load banks to ensure reliable power performance.
How Does a Resistive Load Bank Work?
A resistive load bank operates by dissipating electrical energy as heat, simulating actual power consumption scenarios. For example, during generator load testing, a 200KW resistive load bank can accurately measure a generator’s power output capability to ensure stable performance in real-world applications.
For example, in UPS system maintenance, a UPS test load bank helps verify whether a UPS can provide sufficient backup power during an outage and assess its discharge efficiency.
Working Process:
| Power Input | The power source(generator,UPS,or energy storage system)supplies power to the load bank. |
| Load Simulation | The internal resistive elements consume electrical power in the form of heat,mimicking actual load conditions. |
| Data Monitoring | Testing equipment measures output voltage,current,frequency,and other parameters to analyze performance. |
| Heat Dissipation | The cooling system ensures stable operation,preventing overheating damage. |
Key Applications of Resistive Load Banks
Generator Load Testing
Ideal for diesel and gas generator full-load testing.
Different power models available, such as 200KW resistive load bank, 400KW adjustable resistive load bank.
Evaluates generator steady-state response, dynamic load capability, and continuous power output.
UPS System Testing
Ensures UPS reliability during power failures.
Adjustable resistive load banks allow precise load adjustments to simulate various power demands.
Energy Storage & Battery Discharge Testin
Used for solar energy storage, wind power battery discharge verification.
Portable resistive load banks enable on-site testing for efficient maintenance.
Power System Testing in Industrial Applications
Inductive resistive load banks simulate complex loads in power system debugging.
Suitable for substations, large industrial equipment, and high-voltage power testing.
Different Types of
Resistive Load Banks & Technical Specifications

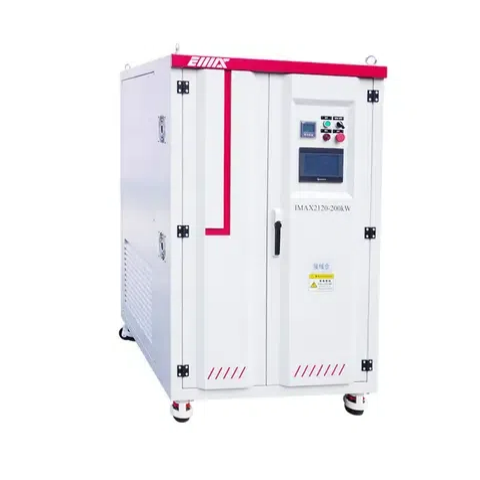

| 200KW Resistive Load Bank | Designed for small and medium-scale generator load testing and UPS verification. | Voltage range: 380V, 400V, 415V, 480V.Ideal for long-duration testing, ensuring stable performance. |
| 400KVA-300KW Adjustable Resistive Load Bank | Suitable for precise power test load bank applications. | Remote control functionality with multiple testing modes. |
| 200KVA AC Resistive-Inductive Load Bank | Simulates complex electrical loads, ideal for industrial power systems. | Used in data centers, shipboard power systems, and grid simulations. |
| 90KVA Portable Energy Storage Test Load Bank | Lightweight design, perfect for field testing of energy storage systems. | Popular in renewable energy applications for battery discharge verification. |
| Customizable Models | Power range: 100KW-1000KW, voltage: 380V-690V. | Suitable for specialized industries such as nuclear power plants, rail transit, and aerospace applications. |
How to Choose the Right Resistive Load Bank?
Match Power Requirements:
A 200KW resistive load bank is suitable for testing generators of the same power rating.
Voltage Compatibility:
Ensure it supports 380V, 400V, 415V, or 480V operating voltages.
Adjustable Load Capability:
Opt for an adjustable resistive load bank for versatile testing needs.

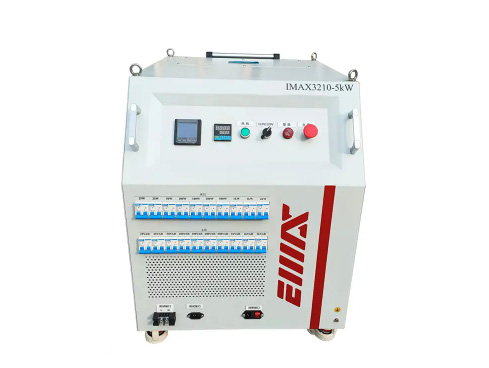

Portability:
Portable resistive load banks are ideal for on-site testing applications.
Safety Features:
Ensure built-in protections such as overload, over-temperature, and short-circuit protection.
Advantages of Using a Resistive Load Bank
Precision Load Testing
Ensures accurate testing for generator load testing, UPS reliability, and energy storage systems.
Wide Model Selection
Covers 200KW resistive load banks, adjustable resistive load banks, portable load banks, and power system test load banks.
Smart Operation
Some models support remote monitoring and automation.
Versatile Applications
Suitable for data centers, industrial power, energy storage, and renewable energy sectors.
Case Studies – Proven Performance in the Industry
A 400KVA adjustable resistive load bank was used to verify a diesel generator’s load-handling capabilities, improving power reliability.
A portable resistive load bank enabled on-site battery discharge testing for an energy storage company.
A UPS test load bank was deployed to validate backup power systems, ensuring uninterrupted operations during outages.
FAQs
Q: What are the primary applications of a 200KW resistive load bank?
A: It is commonly used for generator load testing, UPS systems, and industrial power testing.
Q: What are the benefits of a portable resistive load bank?
A: It is lightweight, easy to transport, and suitable for on-site energy storage and EV battery discharge testing.
Q: Can power test load banks be customized?
A: Yes, we offer custom-built load banks with different power ratings, voltage levels, and remote monitoring options.
Contact Us –Get a Free Quote Today!
For more information on our resistive load bank solutions, contact us today for expert advice and a free quote. Our team is ready to assist you in selecting the best generator load testing, UPS load testing, and power test load bank for your needs.
